Active 1090 MHz Filter + LNA

Hardware availability on enquiry

Contact us to check hardware availability. EU shipping only; prices exclude shipping costs. Availability and delivery are confirmed individually.

69.99 PLN gross
56.90 PLN net + VAT 23% (13.09 PLN)
Shipping within the EU only · Shipping costs excluded

Ask about availability →

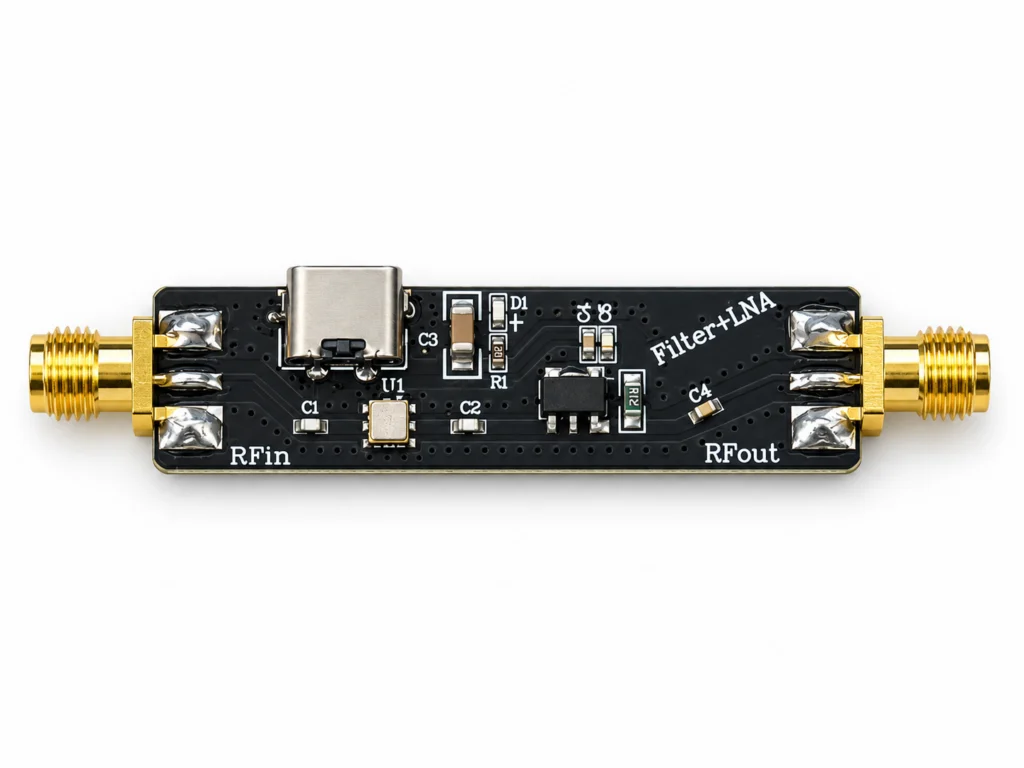

Active 1090 MHz Filter + LNA

A compact active RF filter and low-noise amplifier designed for ADS-B reception on 1090 MHz.

The module combines a dedicated 1090 MHz filter with approximately +20 dB of amplification, helping improve reception in installations where additional filtering and signal gain are required.

It can be used with ADS-B.Pro receivers, VRS X installations, dump1090, readsb and other compatible ADS-B setups.

FEATURES

  • Designed for ADS-B reception on 1090 MHz
  • Integrated 1090 MHz RF filter
  • Integrated low-noise amplifier
  • Approx. +20 dB gain
  • Separate RF input and RF output
  • USB-powered
  • USB-C connector used for power only
  • No USB data connection
  • USB Power Delivery (USB-PD) is not supported
  • Suitable for Raspberry Pi and other Linux-based receiver builds
  • Compatible with common ADS-B SDR receivers

POWERING THE FILTER

For best results, we recommend powering the filter from a separate USB port on the same device that hosts the SDR receiver.

For example:

  • SDR receiver → one USB port
  • Active filter → another USB port on the same device

This keeps the installation simple and self-contained.

The USB-C connector is used only to provide power to the filter and amplifier. It does not provide a data connection and does not require USB Power Delivery negotiation.

INSTALLATION

The module should be installed between the antenna and the SDR receiver:

Antenna → Active 1090 MHz Filter + LNA → SDR

Make sure the RF input and RF output are connected in the correct direction.

USE CASES

  • ADS-B aircraft tracking
  • Improving reception in RF-noisy environments
  • Receiver installations using external antennas
  • ADS-B.Pro feeder stations
  • VRS X installations
  • Raspberry Pi receiver builds
  • Home and remote ADS-B receiving stations

WHAT YOU NEED

The module requires:

  • a suitable 1090 MHz antenna
  • an ADS-B SDR receiver
  • appropriate RF cables or adapters
  • a standard USB power source

Purchasing this module through ADS-B.Pro also helps support ongoing development of ADS-B.Pro and VRS X.

Imported by ADS-B.Pro
